Operation and function description

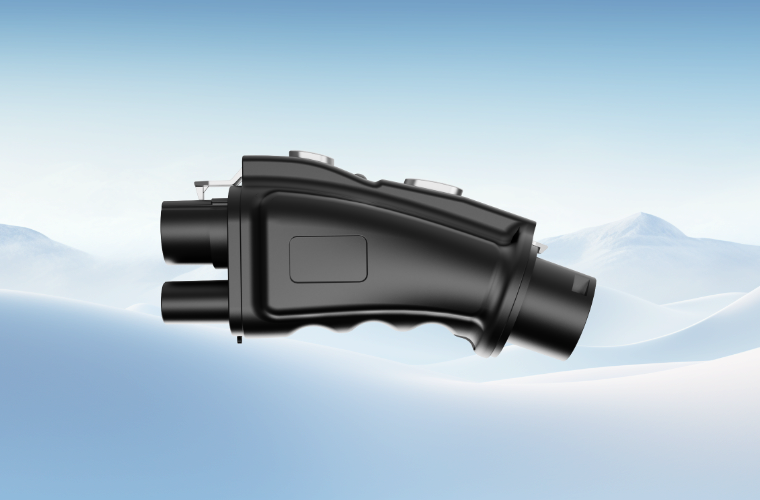

Insert the adapter into the CCS2 gun head of the European standard charging pile (the GB/T end has unlock and stop functions, and its structure is in the form of hook buckle), then insert it into the Chinese standard GB/T vehicle socket, click the power button on the adapter to enter standby state, and then click "Start charging" on the charging pile interface.
USB
The attached USB data cable can be used to connect a 5V power bank to charge the 18650 battery, or used for upgrading or downloading data (Please prepare 16G USB flash memory in FAT format).
Functions of indicator
Install the 18650 rechargeable battery and press the micro-touch power switch on it. If there is power, the indicator will flash; if not, the battery may be out of power or installed reversely. If there's no power, you can use the attached charging + data two-in-one USB cable to charge it with an external 5V power bank. Usually, when using this adapter to charge the vehicle, it will also charge the 18650 battery. If the vehicle is often charged with an adapter, the battery does not require external charging.
Parameters of CCS2-GB/T Adaptor
| Product model | KM-CCS2-GBT | |
| Model | CCS2 to GB/T (European standard to Chinese standard) | |
| Working temperature | -20℃～+50℃ | |
| Storage temperature | -40℃～+85℃ | |
| Weight | ＜3kg | |
| Voltage | 100-1000VDC | |
| Rated current | 200AMax | |
| Rated voltage | 1000VDCMax | |
| Charging current | 200ADC MAX | |
| Contact resistance | 0.5 mΩ Max | |
| Protection grade | IP54 | |
| Fireproof grade of rubber shell | UL94V-0 | |
| Waterproof grade | IP55 (after connection) | |
| IP54 | ||
| Shell | Thermoplastic | |
| Conductor | Copper alloy, silver plated on surface | |
| Temperature rise of terminal | <50K | |
| Coupling insertion and extraction force | <140N | |
