Battery Energy Storage Connector

A battery energy storage connector is a connector used to connect batteries and other electronic devices. It is usually made of metallic materials and can transmit electric current and electrical signals. The main function of the battery energy storage connector is to provide a reliable power connection and prevent the battery from loosening or falling off. In the energy storage system, the battery energy storage connector can be used to connect the battery assembly, the connection between the battery assembly and the inverter or charger, and the connection with other energy storage devices. Battery storage connectors can also be used in solar panel systems and wind turbine systems to connect batteries to power inverters or other devices. When selecting a battery energy storage connector, factors such as current and voltage requirements, reliability and durability of the connector need to be considered.

The battery energy storage connector is one of the key components used to connect the battery energy storage system. Its main features and parameters are as follows:

Features:

• High reliability: Battery energy storage connectors are usually designed with reliable materials and structures to ensure stable operation in complex environments such as long periods of time and high loads.

• High safety: Battery energy storage connectors usually have safety designs such as anti-reverse insertion and anti-electric shock to avoid safety problems caused by improper connections.

• High durability: Battery energy storage connectors are usually made of high-strength, wear-resistant materials and designs, which can maintain long-term service life under conditions such as multiple insertions, vibrations, and shocks.

The main parameters:

• Rated current: The rated current of the battery energy storage connector refers to the maximum current value it can withstand, usually in ampere (A). When selecting a connector, ensure that its rated current is greater than the actual required current value.

• Rated voltage: The rated voltage of the battery energy storage connector refers to the maximum voltage it can withstand, usually in volts (V). When selecting a connector, ensure that its rated voltage is greater than the actual required voltage.

• Contact resistance: The contact resistance of a connector refers to the resistance value of its contact point, usually in milliohms (mΩ). The smaller the contact resistance, the more stable the connection and the smoother the transmission.

• Withstand voltage: The withstand voltage of a connector refers to the maximum voltage it can withstand, usually in kilovolts (kV).

• Operating temperature: The operating temperature of the connector refers to the temperature range in which it can work normally, usually in degrees Celsius (°C). It is necessary to select the appropriate connector model according to the actual use environment.

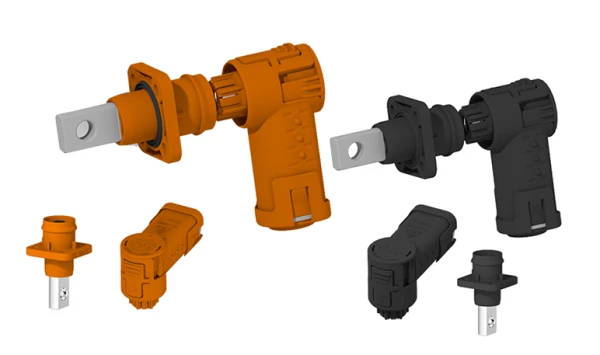

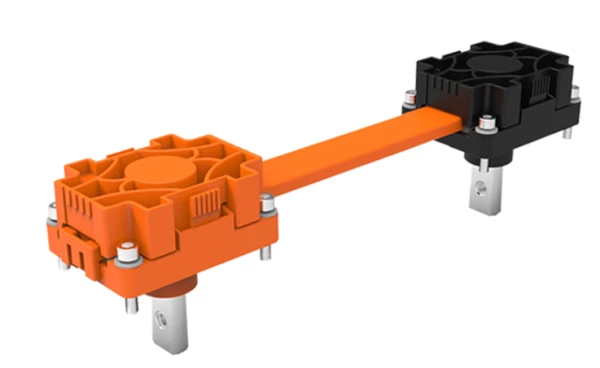

Saichuan electronic energy storage connector are used for positive and negative high-voltage connections between battery packs in chemical energy storage systems. Install energy storage systems quickly, safely and cost-effectively for applications up to 1,500 V and 400 A. There are a variety of models to choose from, which can adapt to high-voltage cables with different wire diameters from 10mm² to 120mm². Our energy storage connectors have obtained TUV, UL, CE certification. In addition, we have also developed copper bar connectors and MSD manual maintenance switches for your choice.

Saichuan Electronics has advanced crimping technology and equipment, can provide energy storage connectors with integrated cables, and tailor-made energy storage connector harnesses for you according to drawings.
