EN 50620, IEC62893 EV charging cable application
It is used for the connection between the AC electric vehicle charging pile and the electric vehicle, and can also be used for the connection between the portable charging device and the charging power source.

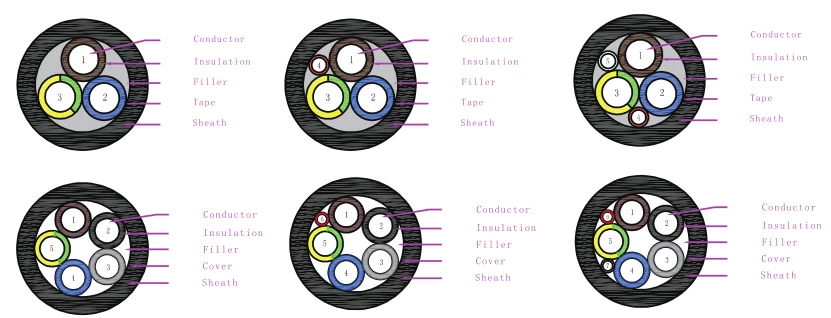

EN 50620, IEC62893 EV charging cable product structure
Conductor: finely stranded copper conductor, conforming to EN 60228 category 5 or 6
Insulation: irradiated ethylene propylene rubber, color can be customized according to customer requirements
Filling: PP mesh filling rope
Tape: thin non-woven fabric
Sheath: TPU, Color: Black
EN 50620, IEC62893 EV charging cable technical parameters
Rated voltage: AC 450/750V
Withstanding voltage test: 2.5kV/5min
Conductor working temperature: -40℃~+105℃
Working environment temperature of the product: -50℃~+50℃
Minimum bending radius: 4D for static applications; 5D for dynamic applications
EN 50620, IEC62893 EV charging cable technical feature
Resistance to chemical liquids: EN50620 (Pass the test for: liquid lubricating oil, diesel and gasoline for high-load machinery, unleaded gasoline, urea, diesel, antifreeze and cleaning solvents)
Anti-ultraviolet aging: EN50620, no discoloration, no cracking, retention rate of tensile strength and elongation at break ≥80%
Friction resistance: EN50620 (the sheath is scraped back and forth for 2000 times, the sheath will not be worn through, and the wire core will not be exposed)
Low temperature bending: EN50620 (-40℃/16h, no cracks on the cable surface)
Anti-vehicle crushing: meet the requirements of EN50620
Flame retardant performance: meet the requirements of EN50620
Halogen-free: meet the requirements of EN50620
Meet RoHS
Parameters of Type 2 EN 50620 EV Charging Cable, IEC62893 standard
| Cable Specifications(mm²) | Conductor outer diameter(mm) | Finished outer diameter range(mm) | 20℃ Conductor Maximum DC Resistance(Q/kM) | Reference ampacity(A) |
| Cable structure and electrical parameters for AC electric vehicle charging | ||||
| 3×2.5+(0~2)×(0.5~0.75) | 2.3 | 12.0~13.0 | 7.98 | 20 |
| 3×6+(0~2)×(0.5~0.75) | 3.5 | 15.0~16.0 | 3.3 | 32 |
| 5×2.5+(0~2)×(0.5~0.75) | 2.3 | 14.0～15.0 | 7.98 | 20 |
| 5×6+(0~2)×(0.5~0.75) | 3.5 | 19.0~20.0 | 3.3 | 32 |
| 3×16+6×(0.5~0.75) | 5.8 | 20.0~23.0 | 1.21 | 80 |
| 3×25+6×(0.5~0.75) | 6.9 | 29.5~30.5 | 0.78 | 100 |
| 3×35+6×(0.5~0.75) | 8.6 | 33.5~34.5 | 0.554 | 125 |
