UL2263 EV charging cable application
It is mainly used for the connection between the electric vehicle charging pile and the electric vehicle, and can also be used for the connection between the portable charging device and the charging power source.
UL2263 EV charging cable (Suitable for Type 1 and CCS1)
UL2263 EV charging cable product structure
Conductor: multi-strand fine-stranded conductor, in line with ASTMB3 or NMX-J-036-ANCE standard
Insulation: TPE or PVC, color one can be customized
Filling: PP mesh filling rope
Tape: thin non-woven fabric
Sheath: TPE or PVC, color: black
UL2263 EV charging cable technical parameters
Rated voltage: 300V, 600V or 1000V
Hipot test: test according to UL62 Table 47
Conductor working temperature: -40℃~+105℃
Working environment temperature of the product: -40℃~+50℃
Minimum bending radius: 4D for static applications; 5D for dynamic application
UL2263 EV charging cable technical feature
Flame retardant performance: UL62 (according to VW-1 combustion test and FT2 combustion test, the test method adopts UL 2556)
Oil resistance: UL62 (60℃/168h, IRM902, retention rate of tensile strength and elongation at break ≥75%)
Weather resistance: UL62 (after 720h aging test, the finished product has no cracks when bent, and the retention rate of tensile strength and elongation at break is ≥80%)
Flexing resistance: UL62 (the number of flexing of the product is not less than 15,000 times, the test method is in accordance with UL2556)
Dielectric constant and stability coefficient: UL62 (the dielectric constant and stability coefficient of the product soaked in 60°C water meet the requirements of UL62 standard, and the test method is in accordance with UL2556)
Low temperature bending: UL62 (-40℃/4h, no cracks on the cable surface)
Thermal Shock: 150℃/1h, in line with UL 2556
Anti-vehicle crush: meet UL62 requirements
Meet RoHS

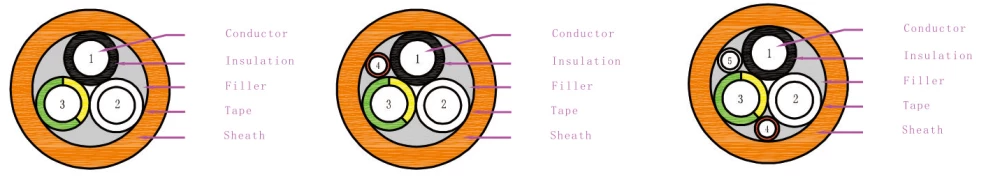

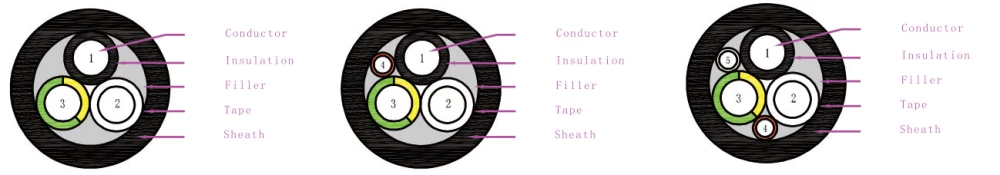

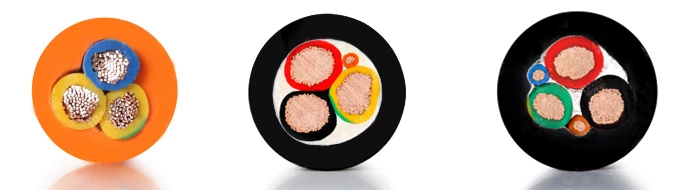

UL62 electric vehicle charging cable structure diagram
Parameters of UL2263 EV charging cable
| Cable Specifications(mm²) | Conductor outer diameter(mm) | Finished outer diameter range(mm) | 20℃ Conductor Maximum DC Resistance(Q/kM) | Reference ampacity(A) |
| 3×16AWG | 1.52 | 9.8~11.2 | 14.1 | 12 |
| 3×14AWG | 1.87 | 12.4~13.8 | 8.88 | 16 |
| 3×12AWG | 2.60 | 13.9~15.3 | 5.58 | 23 |
| 3×10AWG | 3.30 | 15.4~16.8 | 3.51 | 32 |
| 3×8AWG | 4.00 | 22.3~23.7 | 2.23 | 46 |
| 2×9AWG+10AWG | 3.51/3.13 | 17.9~19.3 | 2.78/3.51 | 35 |
| 2×6AWG+8AWG | 5.60/4.15 | 23.3~24.3 | 1.40/2.23 | 63 |
| 2×2AWG+4AWG | 8.85/6.67 | 30.6~32.6 | 0.555/0.882 | 125 |
| 2×1AWG+3AWG | 9.95/7.43 | 35.2~37.2 | 0.440/0.700 | 150 |
